Stability Venlo Type Greenhouse / High Standard Venlo Glasshouse
Good Appearance
Introduction

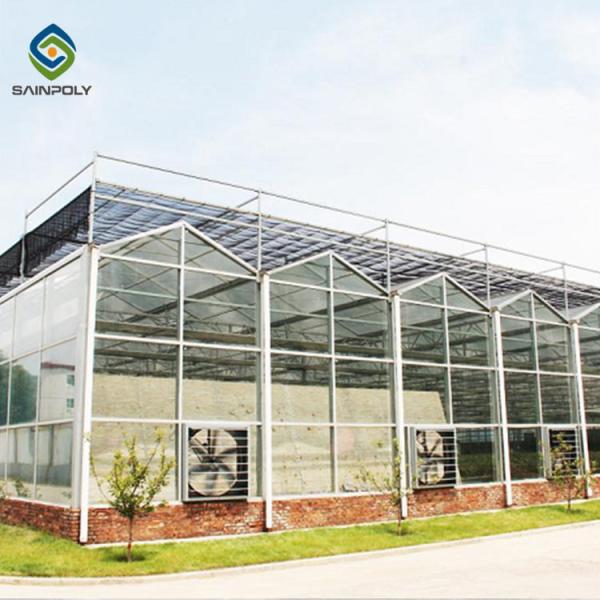

Stability Venlo Type Greenhouse / High Standard Venlo Glasshouse
Good Appearance are luxurious, elegant and permanent.They are
usually for commercial, research and luxury custom ecopark design.
When you are inside of a glass greenhouse,the clarity of the glass
will make you feel as if you are surrounded by your own cultivated
paradise.This alone is enough reason for so many gardening
enthusiasts to choose glass over PC sheet or plastic film for a
greenhouse.
Frame
The greenhouse frame is made by the materials of hot dip galvanized
steel pipes, connected by screws, bolts or suitable connectors. The
roof can be pitched roof (supported by rectangular tubes) or arched
roof (supported by circular tubes). The uprights of greenhouse is
made by the rectangular tubes.The frame structure is anti-corrosion
and high-temperature resistant
Covering materials
Glass is available on the roof or the side of the
greenhouse,thickness of which can be 4mm or 5mm.and the glass
greenhouses are luxurious, elegant and permanent. The clarity of
the glass will make you feel as if you are surrounded by your own
cultivated paradise. This alone is enough reason for so many
gardening enthusiasts to choose glass over PC sheet or plastic film
for a greenhouse glazing.
Parameter
| Multi-Span Glass Greenhouse |
| Main Frame | Hot Galvanized Steel |
| Covering Material | Tempered Glass |
Covering Material Lifetime | >10years |
| Column Shape | Rectangular |
| Columns | Size | Thickness |
| 50*100mm/60*120mm/70*140mm | 2.5-3.0mm |
| Span | 8-10m |
| Height | 2.5-3m |
| Wind Load | 0.5KN/m² |
| Snow Load | 0.3KN/m² |
Optional system
Ventilation system
The way of opening the top window includes one-side top window
drove by rack and pinion, two-sides top window drove by rack and
pinion, staggered top window drove by rack and pinion, electric
roll top window, side window drove by rack and pinion, electrical
roll side window, sliding window and etc.
The rack and pinion system has a number of rack and pinion racks.
Under the action of the drive shaft, the greenhouse windows open.
Due to conform to the direction of hot air flow, it can conducive
to the flow of air and summer cooling and dehumidification. This
system can effectively improve the greenhouse ventilation area,
reduce costs, applicable to all types of greenhouse. Ventilation
rate is up to 27%.
Shading system
a.External shading system
The primary function of the system is to cool the heat in summer,
the sun would diffuse into the greenhouse to ensure that crops from
strong light burns. Due to blocking a significant amount of light
into the room, it can effectively reduce the accumulation of heat
in the greenhouse, drop 4°C to 6°C of room temperature.
Features:
Anti-ultraviolet, anti-hail, reduce the damage to the top of the
greenhouse.
According to the different crops, use different shade curtains to
meet the needs of various plants under the sunlight.
In summer, through the shade curtain can efficiently reflect part
of the sunlight, drop room temperature 4 to 6 degrees Celsius.
b.Internal Shading/Insulation System
Anti-fog and anti-drip: After close the inner shading system, it
will form two separate lower and upper spaces in the greenhouse,
this can effectively prevent the formation of the fog in the
greenhouse and the dewdrops. To increase the indoor insulation
effect, we can use double shade system. The curtain has two types,
breathable curtain, and insulated curtain, like waterproof space
cotton insulation blanket. According to the need, we choose
different light transmission capacity of the shade curtain or
insulation curtain.
Energy saving and insulation: In winter and night, it can
effectively prevent the heat inside the greenhouse through the
radiation or heat exchange spill, thus reducing energy consumption
and greenhouse operating costs.
