20-33ft pe film multi-span plastic shed greenhouse film green house
tomato greenhouse with hydroponic growing systems
Product Description

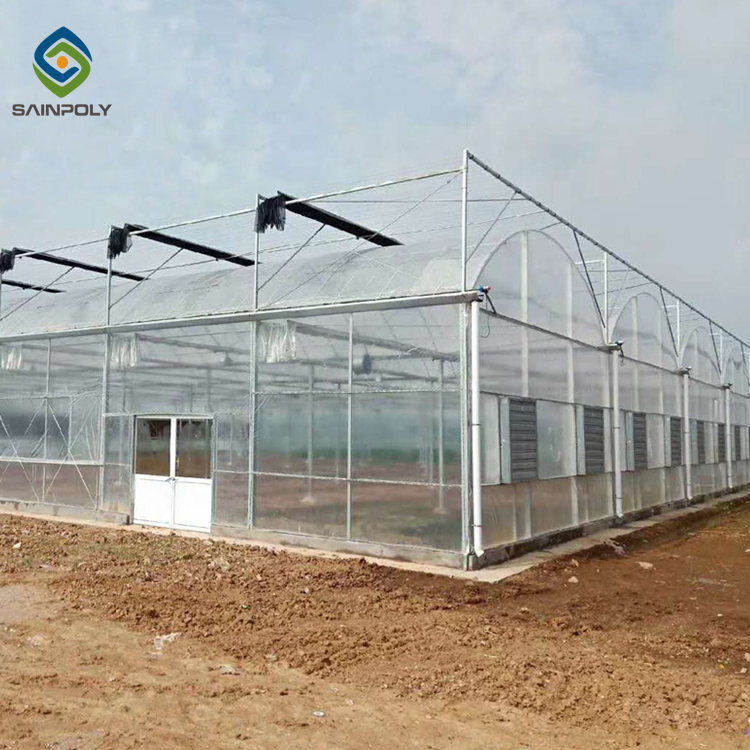

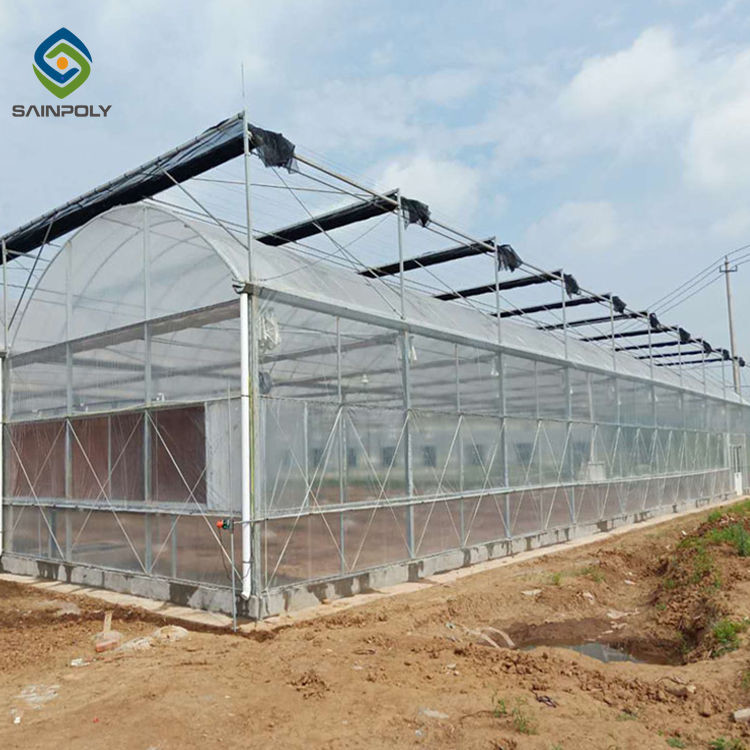

Film greenhouse is a simple and practical protective cultivation
facility, widely be used all over the world because of its easy
construction, easy use and low investment for vegetable and flower
productions.
The tie-beam reinforcement and greenhouse span will be sized
according to the production (crop supports or hanging irrigation
system) as well as to its geographic position due to wind exposure
and snow load.
Indeed, it is still one of the products considered an "excellence"
for its constant demand by customers in every part of Italy and the
world. The very competitive price ensures wide distribution of this
greenhouse model.
Specification
20-33ft pe film multi-span plastic shed greenhouse film green house
tomato greenhouse with hydroponic growing systems |
Film Thickness | 0.08mm,0.12mm,0.15mm,0.20mm |
Transmittance Rate | >70% |
Span | 8.0m |
Eaves Height | 5.0m,customized |
Column Space | 4.0m |
Snow Load | 0.35KN/m2 |
Wind Load | 0.45KN//m2 |
Greenhouse System
Outside and inside shading system
1.Equipped with automatic and manual control system. Easy to
operate.
2.The curtain wire is reliable, beautiful in appearance, high
carrying capacity and long service life.
3.High-quality long-life shading net. The shading rate is 75%.
Ventilation System
Top ventilation: All the middle spans have two electric roll up
motors and both of side spans have one electric roll upmotor
Side ventilation: Both side have two electric roll up motors. Each
motor is 60w with climber and cable film fixed parts, rolling up
60m plasticfilm.
Cooling Fan
Introduction: The pads and fans are used together to realize the
functions of cooling and ventilation.
Size: Exhaust Hammer Fans in 1380*1380*400 mm with wind volume
44000 m3/h.
Cooling Pad
Introduction: The pads and fans are used together to realize the
functions of cooling and ventilation.
Size: Aluminum frame, height is 1.5 m with thickness 150mm.
Irrigation system
The greenhouse irrigation system includes drip irrigation system
and drip irrigation system. Its working principle is to extract
irrigation water from the source, pressurize, purify and filter it,
and then send it to the field irrigation facilities through the
water delivery pipeline.Finally, the irrigation emitter releases
irrigation water into the field plants in the greenhouse.
Hydroponic System
1. The soilless system is used coconut coir as substrate.
There is nutrient solution supply machine, which can control the EC
value and PH value automatically. Inside installs hanging pipe and
hanging line.
2. Substrade: coconut coir
The parameter of coconut coir: biological and environmental, plenty
of organic nutrients, retaining water and ventilating.PH value:
5.5-6.5 EC value≤600μs/cm
3. PVC planting trough
The planting trough is made of PVC pipe, thickness 3-4mm, the top
width 180mm, bottom width 120mm and height 160mm.
The planting trough can be put on shelves, and also can be put on
the ground or under ground. The PVC trough has many
sizes,customized by you.
4.Planting Arrangement
Install 8-9 rows in the greenhouse with 12m span, evenly
distributed; install 5-6 rows in the greenhouse with 8m span ,
evenly distributed.One side is a little high, and the other side is
a little low for drainage of the wast nutrient solution. Install
track between the two rowa for daily management and picking.
Packing & Delivery
Packing
The normal package is tube nude cargo , accessories is carton
package . We will pack it according to customers special request.
Delivery
(1) Way : Sea or land transport
(2) Time : According to the current production line and the
greenhouse area arrangement ,the normal 800-2000sqm . Production
time is about 30 working days
(please consult us for the specific time).
Company Profile
A greenhouse factory focusing on providing customers with nice
quality professional services. There have 7 years of greenhouse
export experience and 23 years of manufacturing experience can give
you the better experience.
It mainly promotes five products: glass greenhouse, PC greenhouse,
film greenhouse, light deprivation greenhouse, and hydroponic
greenhouse. It has comprehensive planting equipment, mature foreign
trade team, and professional design team, which supports
customization and provides customers with the most suitable
products.
Your request is our standard.
FAQ
Q1:Are you a trading company or a manufacturer?
A: We are a factory. Our factory produces all items related to the
greenhouse, so we provide the best price,
Q2: How long is your delivery time?
A: 1000-5000 square meters, 25-40 days, if you encounter a special
period, please contact the salesperson for details
Q3: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't bear
the freight.
Q4: How to get a quotation for the greenhouse?
A: Please let us know how many greenhouses are needed? What will be
grown in the greenhouse? So that we can suggest related systems
Q5: How should I choose a greenhouse system?
A: Please let us know where the greenhouse is (temperature, wind
speed)
Q6: How to assemble the greenhouse when purchasing?
A:We have professional after-sales service engineers who will
provide planning drawings and installation manuals. You can
communicate with him from time to time. If necessary, we can also send engineers to your country to
supervise the installation of the greenhouse.
Please send a message for specific details.
