    Section Width 3-6m Multi Span Greenhouse Hot Galvanized Steel Frame For Agricultural

    Ask Lasest Price
    Brand Name : SAINPOLY
    Model Number : Sainpoly01
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 50000sqm. per month
    Delivery Time : 30-60days
    • Product Details
    • Company Profile

    Section Width 3-6m Multi Span Greenhouse Hot Galvanized Steel Frame For Agricultural

    Hot Galvanized Steel Frame Large Multi Span PC Sheet Greenhouse for Agricultural

    Introduction

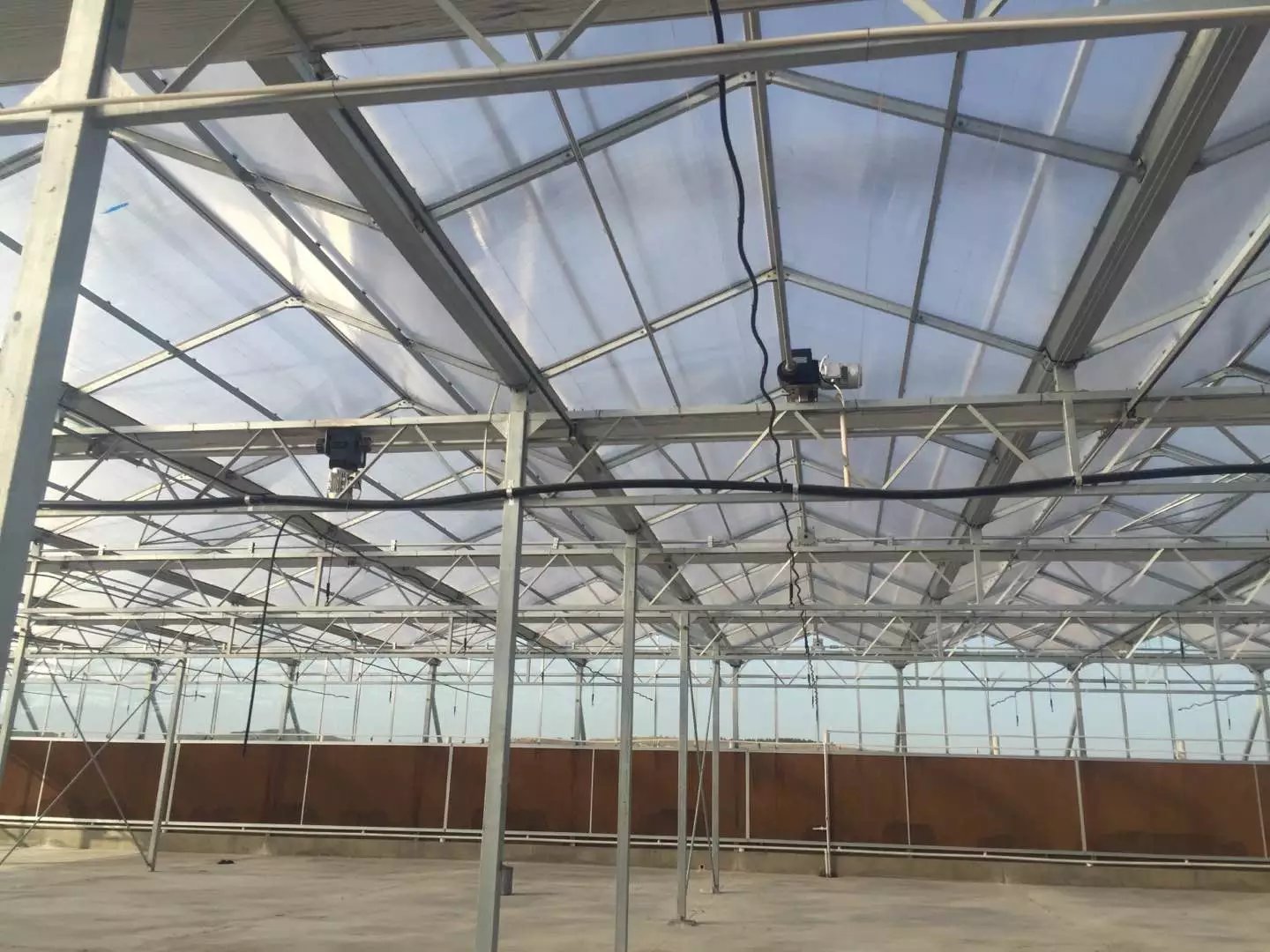

    Multi Span PC Sheet Greenhouse is a multi-purpose greenhouse structure with vertical sides and interconnected gutters which can be used for a variety of crops. Due to the high roof, it is easier to control the temperature.


    Polycarbonate Panels are the jack-of-all-trades for plastic sheets. Durable, versatile, and easy to work with, polycarbonate panels can be used in hundreds of custom projects. Patio and pergola coverings, skylights, custom greenhouses and other structures. We've even had customers use them for solar cookers and biomass generators. There is no limit to their use.

    Polycarbonate panels are less expensive in comparison to almost any other plastic sheet, and they are easier to work with than glass or acrylic. Use polycarbonate panels for your next custom project.

    We offer various sizes and can manufacture to specification as well. The structures are either naturally ventilated with roof and side curtains, or have a pad and fan cooling system with Envirowatch digital control boards.

    In the Multispan greenhouse range we build 6.4m, 8m, 9.6m and10m, 12m structures,

    We build Multispan greenhouses only up to 500m² in size. Anything bigger is more affordable and quicker to import. We are in a joint venture with Vegtech and also market their Multispan greenhouses.

    We use only the best quality pre-galvanized piping for our structures, and all our piping and channels are 2mm plus thick. All the parts on our structures are hot dipped galvanized after welding.


    Section Width 3-6m Multi Span Greenhouse Hot Galvanized Steel Frame For Agricultural


    Specification


    PC Sheet Greenhouse



    Frame Structure

    Thickness


    mm1.0-2.5

    Size


    mm15x20~100x200
    Zinc Coatingg/m250~120, could be thicker than 80g/m2 if you need

    Coverage

    polycarbonate sheet

    impact strength


    J/m850

    specific of gravity


    G/m31.2

    coefficient of thermal expansion


    Mm/°c6.5 x 10-5

    heat conductivity


    W/m2 °c2.3-3.9

    tensile strength


    N/m.m2≥60

    Flexural strength


    N/m.m2>100

    tensile stress at break


    Mpa≥65

    specific heat


    Kj/kg.k1.17

    resist the ultraviolet rate


    %>99


    Design Parameters

    Wind resistance


    km/h120

    Wind load


    KN/m20.35

    Rain drainage


    m3/h140

    Permanent load


    KN/m20.15

    Our Project
